Measure cash flows with CostIncome

This notebook introduces the CostIncome class from CLIMADA, which is used to model the financial cash flows of adaptation or risk-reduction measures over time.

A CostIncome object tracks:

• Initial (one-off) costs — the upfront implementation cost

• Periodic costs — recurring expenses (e.g., maintenance)

• Periodic income — recurring revenues (e.g., insurance savings, avoided losses)

• Growth rates — how costs and incomes evolve over time

• Custom cash flows — arbitrary user-defined flows (layered on top)

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# Adjust the import path if running outside the CLIMADA package tree
from climada.entity.measures.cost_income import CostIncome

Quickstart

The simplest way to create a CostIncome is by passing keyword arguments directly.

Parameter	Meaning	Sign convention
init_cost	One-off implementation cost	stored negative
periodic_cost	Recurring cost each period	stored negative
periodic_income	Recurring income each period	stored positive
mkt_price_year	Reference year for price levels	—
freq	Period frequency (e.g. 'Y', 'M', 'Q')	—

Note

Sign convention CostIncome stores costs as negative numbers internally.

Note

Financial values in CostIncome are currently unitless (no currency is specified)

ci = CostIncome(
    mkt_price_year=2020,
    init_cost=20_000,  # 50 000 upfront
    periodic_cost=5_000,  # 5 000 / year maintenance
    periodic_income=12_000,  # 8 000 / year in avoided losses
    freq="Y",  # annual cash flows
)

print(ci)

CostIncome(
  mkt_price_year          = 2020
  freq                    = 'Y'
  init_cost               = -20,000.00
  periodic_cost           = -5,000.00
  periodic_income         = 12,000.00
  cost_yearly_growth_rate = 0.00%
  income_yearly_growth_rate = 0.00%
  custom_cash_flows       = None
)

Calculating cash flows

Three methods are available:

Method	Returns
calc_cash_flows(impl_date, start_date, end_date)	Three np.ndarray: net, costs, incomes
calc_total(...)	Three scalars: summed net, cost, income
to_dataframe(...)	A tidy pd.DataFrame

The impl_date is when the measure is deployed. Cash flows before this date are zero; the initial cost lands on impl_date; periodic flows start the following period.

impl_date = "2022-01-01"
start_date = "2020-01-01"
end_date = "2030-01-01"

net, costs, incomes = ci.calc_cash_flows(impl_date, start_date, end_date)

print("Period  | Net       | Cost      | Income")
print("-" * 45)
periods = pd.period_range(start=start_date, end=end_date, freq="Y")
for p, n, c, i in zip(periods, net, costs, incomes):
    print(f"{p}  | {n:>9.0f} | {c:>9.0f} | {i:>6.0f}")

Period  | Net       | Cost      | Income
---------------------------------------------
2020  |         0 |         0 |      0
2021  |         0 |         0 |      0
2022  |    -20000 |    -20000 |      0
2023  |      7000 |     -5000 |  12000
2024  |      7000 |     -5000 |  12000
2025  |      7000 |     -5000 |  12000
2026  |      7000 |     -5000 |  12000
2027  |      7000 |     -5000 |  12000
2028  |      7000 |     -5000 |  12000
2029  |      7000 |     -5000 |  12000
2030  |      7000 |     -5000 |  12000

total_net, total_cost, total_income = ci.calc_total(impl_date, start_date, end_date)
print(f"Total net    : {total_net:>10.0f}")
print(f"Total cost   : {total_cost:>10.0f}")
print(f"Total income : {total_income:>10.0f}")

Total net    :      36000
Total cost   :     -60000
Total income :      96000

df = ci.to_dataframe(impl_date, start_date, end_date)
df

	date	net	cost	income
0	2020	0.0	0.0	0.0
1	2021	0.0	0.0	0.0
2	2022	-20000.0	-20000.0	0.0
3	2023	7000.0	-5000.0	12000.0
4	2024	7000.0	-5000.0	12000.0
5	2025	7000.0	-5000.0	12000.0
6	2026	7000.0	-5000.0	12000.0
7	2027	7000.0	-5000.0	12000.0
8	2028	7000.0	-5000.0	12000.0
9	2029	7000.0	-5000.0	12000.0
10	2030	7000.0	-5000.0	12000.0

Visualising cash flows

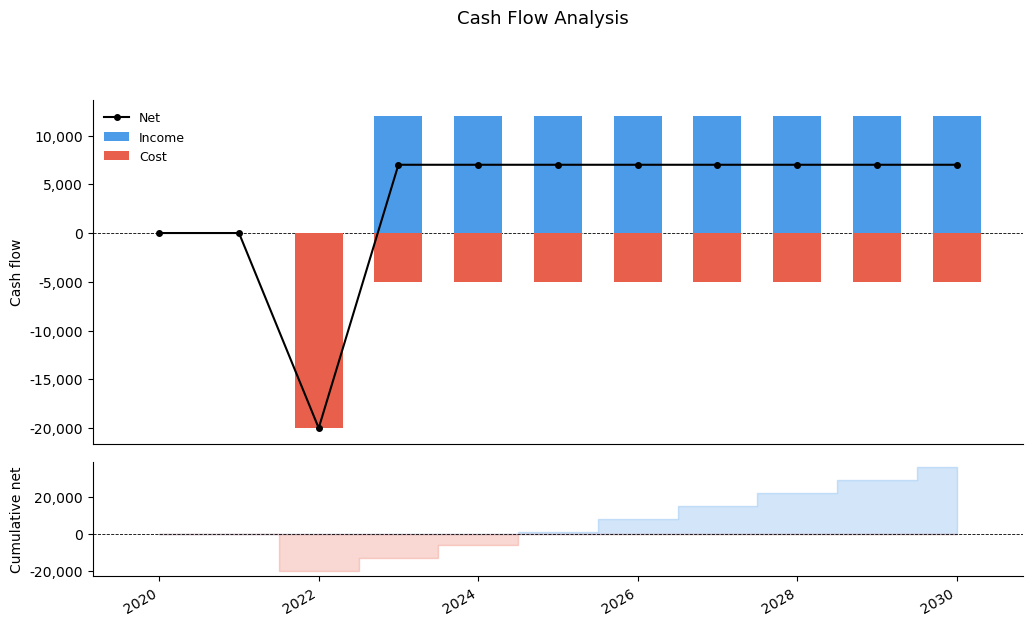

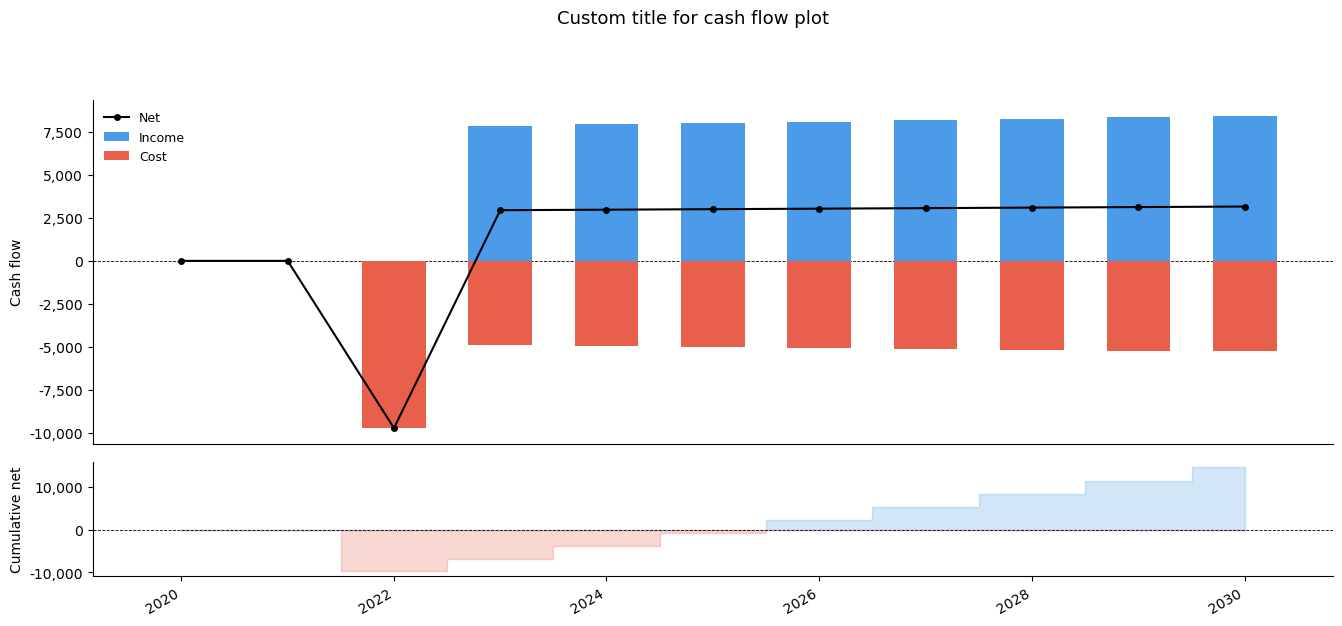

plot_cash_flows draws a bar chart. You can choose which series to display via the to_plot argument.

ci.plot_cash_flows(
    impl_date,
    start_date,
    end_date,
)

(<Axes: ylabel='Cash flow'>, <Axes: ylabel='Cumulative net'>)

Growth rates

Costs and incomes can grow year-over-year using compound-interest factors anchored to mkt_price_year.

\[\text{value}(t) = \text{base} \times (1 + r)^{\frac{t - t_0}{365}}\]

Pass cost_yearly_growth_rate and / or income_yearly_growth_rate (as decimals, e.g. 0.02 for 2 %).

ci_growth = CostIncome(
    mkt_price_year=2020,
    init_cost=50_000,
    periodic_cost=5_000,
    periodic_income=8_000,
    cost_yearly_growth_rate=0.02,  # costs grow 2% / year
    income_yearly_growth_rate=0.03,  # income grows 3% / year
    freq="Y",
)

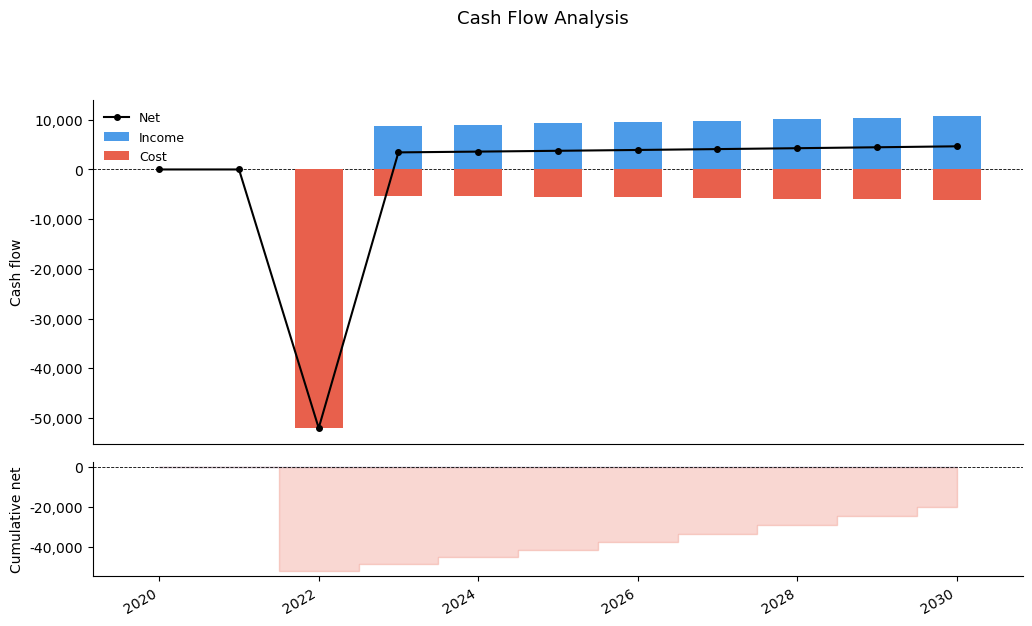

ci_growth.plot_cash_flows(impl_date, start_date, end_date)

(<Axes: ylabel='Cash flow'>, <Axes: ylabel='Cumulative net'>)

# Compare totals with and without growth
no_growth = ci.calc_total(impl_date, start_date, end_date)
with_growth = ci_growth.calc_total(impl_date, start_date, end_date)

labels = ["Net", "Cost", "Income"]
print(f"{'':15s} {'No growth':>12s} {'With growth':>12s}")
for label, ng, wg in zip(labels, no_growth, with_growth):
    print(f"{label:15s} {ng:>12.0f} {wg:>12.0f}")

                   No growth  With growth
Net                    36000       -19821
Cost                  -60000       -97569
Income                 96000        77748

Custom cash flows

For irregular or one-off flows, pass a pd.DataFrame with columns date, cost, and/or income.

These are added on top of any periodic amounts; dates not present in the DataFrame simply contribute zero.

custom_flows = pd.DataFrame(
    {
        "date": ["2024-01-01", "2026-01-01", "2028-01-01"],
        "cost": [10_000, 0, 20_000],  # extra one-off costs
        "income": [0, 15_000, 0],  # extra one-off income
    }
)

ci_custom = CostIncome(
    mkt_price_year=2020,
    init_cost=50_000,
    periodic_cost=5_000,
    periodic_income=8_000,
    custom_cash_flows=custom_flows,
    freq="Y",
)
ci_custom.to_dataframe(impl_date, start_date, end_date)

	date	net	cost	income
0	2020	0.0	0.0	0.0
1	2021	0.0	0.0	0.0
2	2022	-50000.0	-50000.0	0.0
3	2023	3000.0	-5000.0	8000.0
4	2024	-7000.0	-15000.0	8000.0
5	2025	3000.0	-5000.0	8000.0
6	2026	18000.0	-5000.0	23000.0
7	2027	3000.0	-5000.0	8000.0
8	2028	-17000.0	-25000.0	8000.0
9	2029	3000.0	-5000.0	8000.0
10	2030	3000.0	-5000.0	8000.0

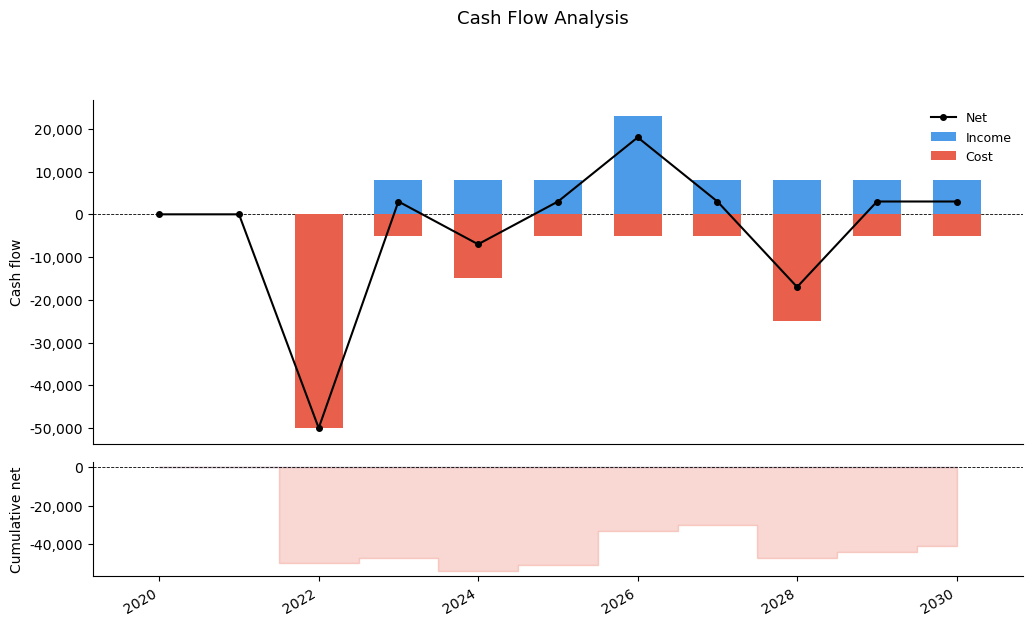

ci_custom.plot_cash_flows(impl_date, start_date, end_date)

(<Axes: ylabel='Cash flow'>, <Axes: ylabel='Cumulative net'>)

Sub-annual frequencies

freq accepts any pandas-compatible period string. Common options:

freq	Meaning
"Y"	Annual
"Q"	Quarterly
"M"	Monthly
"7D"	Every 7 days

Note

The periodic amounts are interpreted as per-period values, not annualised.

ci_monthly = CostIncome(
    mkt_price_year=2022,
    init_cost=5_000,
    periodic_cost=500,
    periodic_income=700,
    freq="M",
)

df_monthly = ci_monthly.to_dataframe(
    impl_date="2022-01-01",
    start_date="2022-01-01",
    end_date="2022-12-01",
)
df_monthly

	date	net	cost	income
0	2022-01	-5000.0	-5000.0	0.0
1	2022-02	200.0	-500.0	700.0
2	2022-03	200.0	-500.0	700.0
3	2022-04	200.0	-500.0	700.0
4	2022-05	200.0	-500.0	700.0
5	2022-06	200.0	-500.0	700.0
6	2022-07	200.0	-500.0	700.0
7	2022-08	200.0	-500.0	700.0
8	2022-09	200.0	-500.0	700.0
9	2022-10	200.0	-500.0	700.0
10	2022-11	200.0	-500.0	700.0
11	2022-12	200.0	-500.0	700.0

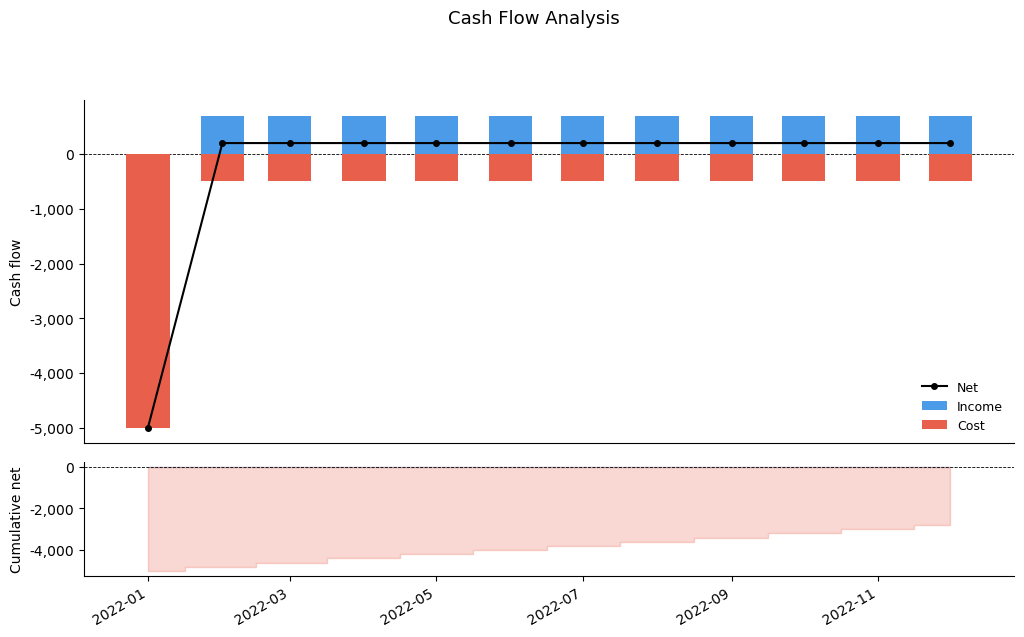

ci_monthly.plot_cash_flows(
    "2022-01-01",
    "2022-01-01",
    "2022-12-01",
)

(<Axes: ylabel='Cash flow'>, <Axes: ylabel='Cumulative net'>)

Combining multiple CostIncome objects

CostIncome.comb_cost_income() aggregates a list of CostIncome objects into a single one by summing costs and incomes.

Warning

All objects must share the same mkt_price_year, cost_growth_rate, and income_growth_rate.

Note

custom_cash_flows are not carried over to the combined object. Merge custom flows manually beforehand if needed.

ci_a = CostIncome(
    mkt_price_year=2020,
    init_cost=30_000,
    periodic_cost=2_000,
    periodic_income=4_000,
    freq="Y",
)

ci_b = CostIncome(
    mkt_price_year=2020,
    init_cost=20_000,
    periodic_cost=3_000,
    periodic_income=4_000,
    freq="Y",
)

ci_combined = CostIncome.comb_cost_income([ci_a, ci_b])

print(ci_combined)

CostIncome(
  mkt_price_year          = 2020
  freq                    = 'Y'
  init_cost               = -50,000.00
  periodic_cost           = -5,000.00
  periodic_income         = 8,000.00
  cost_yearly_growth_rate = 0.00%
  income_yearly_growth_rate = 0.00%
  custom_cash_flows       = None
)

Loading from dict / YAML

From a Python dictionary

config_dict = {
    "mkt_price_year": 2020,
    "init_cost": 50_000,
    "periodic_cost": 5_000,
    "periodic_income": 8_000,
    "cost_yearly_growth_rate": 0.02,
    "income_yearly_growth_rate": 0.03,
    "freq": "Y",
}

ci_from_dict = CostIncome.from_dict(config_dict)
print(ci_from_dict)

CostIncome(
  mkt_price_year          = 2020
  freq                    = 'Y'
  init_cost               = -50,000.00
  periodic_cost           = -5,000.00
  periodic_income         = 8,000.00
  cost_yearly_growth_rate = 2.00%
  income_yearly_growth_rate = 3.00%
  custom_cash_flows       = None
)

From a YAML file

Create a YAML file structured as follows, then load it with CostIncome.from_yaml.

# measure_cost.yaml
cost_income:
  mkt_price_year: 2020
  init_cost: 50000
  periodic_cost: 5000
  periodic_income: 8000
  cost_yearly_growth_rate: 0.02
  income_yearly_growth_rate: 0.03
  freq: "Y"
  # Optional custom flows:
  # custom_cash_flows:
  #   - date: "2024-01-01"
  #     cost: 10000
  #     income: 0
